PAA300F-15 Description

PAA300F-15 is a 15 V, 22 A power supply made by Cosel. It powers control electronics in industrial automation, telecom, test and measurement and other equipment.

We help engineers and repair technicians find parts like the PAA300F-15, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Cosel PAA300F-15 is used for industrial automation, test and measurement, telecom and datacom, medical, LED lighting and other equipment that needs reliable regulated DC power.

Key Specifications

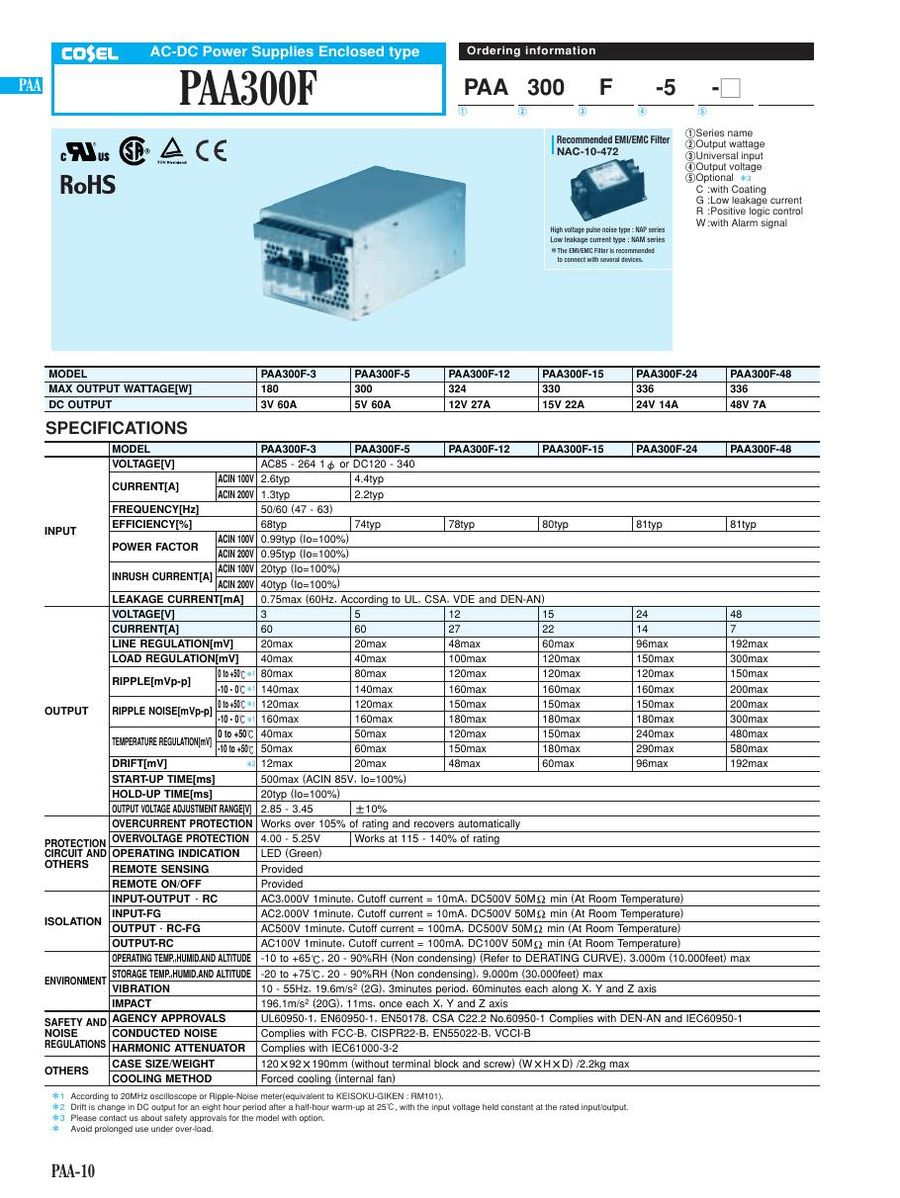

Cosel PAA300F-15 is an AC-DC power supply, enclosed type from the PAA series, 330 W, output 15 V, input AC 85 - 264 1-phase or DC 120 - 340. Source: Cosel PAA series datasheet.

Parameter	Value
Series	Cosel PAA series (PAA300F)
Type	AC-DC power supply, enclosed type
Max output wattage	330 W
Output voltage	15 V
Output current	22 A
Input voltage range	AC 85 - 264 1-phase or DC 120 - 340
Efficiency (typ)	80 %
Overcurrent protection	Works over 105% of rating and recovers automatically
Overvoltage protection	4.00 - 5.25V Works at 115 - 140% of rating
Isolation, input-output	AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MΩ min (At Room Temperature)
Operating temperature, humidity and altitude	-10 to +65°C, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
Case size / weight	120X92X190mm (without terminal block and screw) (WXHXD) /2.2kg max
