3A500-45H3 AEG - Thyro Power Controller

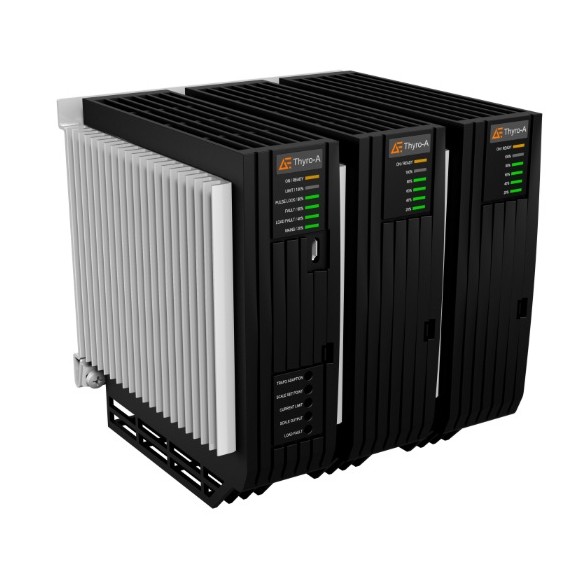

3A500-45H3 Description

3A500-45H3 is a 500 V, 45 A thyristor power controller made by AEG. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the 3A500-45H3, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

AEG 3A500-45H3 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.

Key Specifications

3A500-45H3 is an AEG / Advanced Energy Thyro-A 3A SCR power controller, 500 V, 45 A. Source: Thyro-A datasheet (ordering code Thyro-A-3A-500-45-H-3).

Parameter	Value
Ordering code	Thyro-A-3A-500-45-H-3
Model	Thyro-A digital SCR power controller
Phase type	3A: three phase power controller for three phase operation
Type voltage	500 V (215 V to 550 V, -57% to +10%)
Type current	45 A
Apparent power	39 kVA
Fuse (H)	Integrated semiconductor fuse
Fan (F)	Not fitted (no 'F' in ordering code)
Control (3)	Standard V, V² control modes
Operating modes	TAKT, VAR
Accuracy	±3% voltage, ±1.5% current
Frequency	47 to 63 Hz
Dimensions (W × H × D)	156 × 203 × 184 mm, 5.1 kg

Technical document (PDF)  |  Request a quote for 3A500-45H3 (reply within 24 hours)
