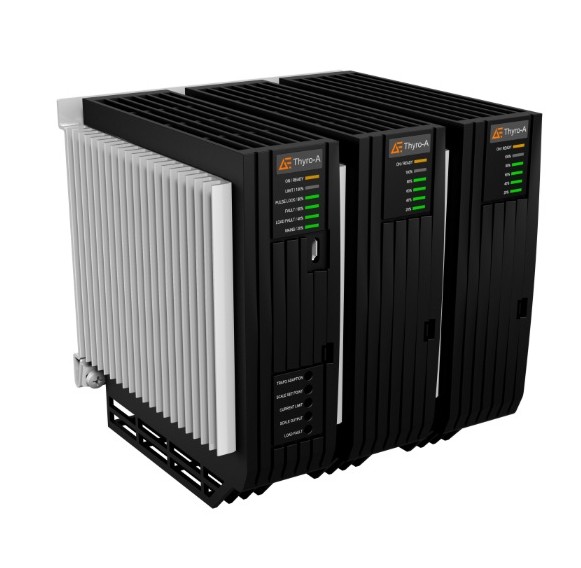

3A400-130H3 AEG - Thyro Power Controller
3A400-130H3 Description
The 3A400-130H3 is a thyristor power controller made by AEG. Thyro power controllers like this regulate electric heaters, furnaces, infrared emitters and transformer loads.
Need the 3A400-130H3? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.
Target Applications
AEG 3A400-130H3 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.
Key Specifications
3A400-130H3 is an AEG / Advanced Energy Thyro-A 3A SCR power controller, 400 V, 130 A. Source: Thyro-A datasheet (ordering code Thyro-A-3A-400-130-H-3).
| Parameter | Value |
|---|---|
| Ordering code | Thyro-A-3A-400-130-H-3 |
| Model | Thyro-A digital SCR power controller |
| Phase type | 3A: three phase power controller for three phase operation |
| Type voltage | 400 V (172 V to 440 V, -57% to +10%) |
| Type current | 130 A |
| Apparent power | 90 kVA |
| Fuse (H) | Integrated semiconductor fuse |
| Fan (F) | Not fitted (no 'F' in ordering code) |
| Control (3) | Standard V, V² control modes |
| Operating modes | TAKT, VAR |
| Accuracy | ±3% voltage, ±1.5% current |
| Frequency | 47 to 63 Hz |
| Dimensions (W × H × D) | 375 × 320 × 241 mm, 12.0 kg |
Technical document (PDF) | Request a quote for 3A400-130H3 (reply within 24 hours)
Related Part Numbers
| 3A500-130H3 500(V) / 130(A) | 3A400-100H3 400(V) / 100(A) | 3A400-170H3 400(V) / 170(A) | 2A400-130H3 400(V) / 130(A) |
| 3A400-60H3 400(V) / 60(A) | 3A400-45H3 400(V) / 45(A) | 3A400-130H1 | 1A400-130H3 400(V) / 130(A) |
| 3A400-130HRL1 400(V) / 130(A) | 3A400-130HRLP1 400(V) / 130(A) | 3A400-100HRLP1 400(V) / 100(A) | 3A400-130HRLP2 |
| 3A400-100HRL1 400(V) / 100(A) | 3A400-1500HFRL1 | 3A400-100HFRLP2 | 3A400-1500HFRLP1 |
