2PX690-500HF Description

AEG makes the 2PX690-500HF, a thyristor power controller. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 2PX690-500HF, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

AEG 2PX690-500HF is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.

Key Specifications

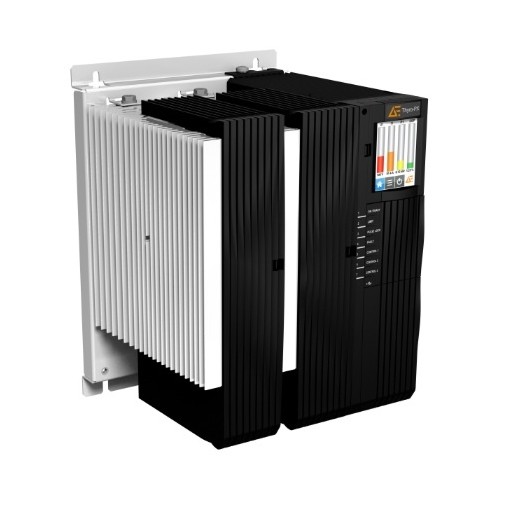

AEG 2PX690-500HF is a Thyro-PX two-phase (for three-phase loads in economy circuit) digital thyristor (SCR) power controller, 690 V type voltage, 500 A, with integrated semiconductor fuse and built-in fan (HF type). Source: AEG / Advanced Energy Thyro-PX Series datasheet.

Parameter	Value
Ratings
Series	Thyro-PX
Phase version	2PX: two-phase (for three-phase loads in economy circuit)
Rated connection voltage	500 V -20% to 690 V +10%
Rated current	500 A
Frequency	45-65 Hz
Control voltage	AC 90-265 V, or DC 24 V ±10%
Cooling	Integrated fan, 230 V 50/60 Hz (HF type)
Load types	Resistive and transformer loads; loads with Rwarm/Rcold up to factor 20 (MOSI starting mode)
Functions
Operating modes	TAKT
Control types	U, U², I, I², P, or without regulation
Control accuracy	±0.5% voltage or current, ±1% power
Set point inputs	Up to 3 analog inputs, 0(4)-20 mA / 0(1)-10(2) V
Actual value outputs	3 (U, I, P), 0-20 mA / 0-10 V
Fault signaling	3 relays plus status / diagnostic LEDs
Integrated fuse	Semiconductor fuse
Mechanical
Dimensions (W x H x D)	261 x 501 x 340 mm (10.3 x 19.7 x 13.4 in)
Weight	22 kg (48.5 lb)
Ambient temperature at rated current	Up to 35°C with fan, up to 45°C with passive convection (max 40°C for UL)
