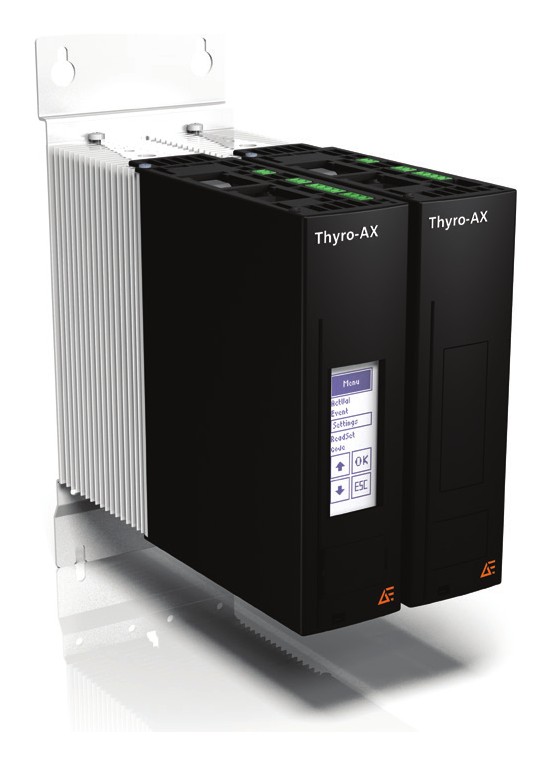

2A400-30HFRLP2 AEG - Thyro Power Controller
2A400-30HFRLP2 Description
AEG 2A400-30HFRLP2 is a thyristor power controller. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.
Request a quote for the 2A400-30HFRLP2 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.
Target Applications
AEG 2A400-30HFRLP2 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.
Key Specifications
AEG 2A400-30HFRLP2 is a Thyro-AX two-phase (for three-phase loads in economy circuit) digital thyristor (SCR) power controller, 400 V, 30 A, with integrated semiconductor fuse (H), fault relay (R), load monitoring (L) and power control (P), forced ventilation (F). Source: AEG / Advanced Energy Thyro-AX datasheet (ENG-Thyro-AX-231-01).
| Parameter | Value |
|---|---|
| Ratings | |
| Series | Thyro-AX (H RLP2) |
| Phase version | 2A: two-phase (for three-phase loads in economy circuit) |
| Rated voltage | 400 V (operating range 24-440 V) |
| Rated current | 30 A |
| Mains frequency | 47-63 Hz |
| Cooling | Forced ventilation (fan) |
| Load types | Ohmic loads (Rwarm/Rcold up to 6, limitation 3 x Inom) and transformer loads |
| Functions | |
| Operating modes | TAKT, SWITCH |
| Control types | Ueff / U²eff / Ieff / I²eff / P |
| Set point inputs | 2 analog set point inputs (0(4)-20 mA, 0(1)-5 V, 0(2)-10 V), 2 digital inputs, 1 switch input |
| Load monitoring | Adjustable response threshold |
| Current limitation | Ieff; current peak limitation to 3 x Inom in VAR mode |
| Relay output | Changeover, max. 250 V, 4 A, 180 W, 1500 VA |
| Analog outputs | 3, each 0(2)-10 V / 0(4)-20 mA |
| External supply | 85-265 V (47-63 Hz) |
| Integrated fuse | Semiconductor fuse (H) |
| Bus interface (optional module) | PROFIBUS DPV1, PROFINET, Modbus RTU/TCP, CANopen, DeviceNet, EtherNet/IP |
Technical document (PDF) | Request a quote for 2A400-30HFRLP2 (reply within 24 hours)
