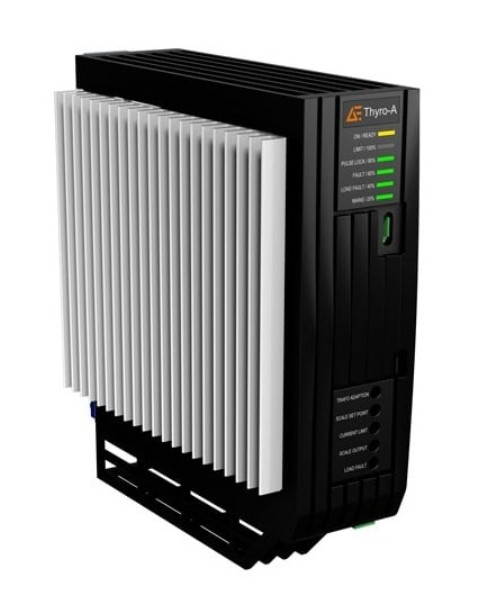

1A400-8H3 AEG - Thyro Power Controller

1A400-8H3 Description

The 1A400-8H3 from AEG is a thyristor power controller with a 400 V / 8 A rating. Thyro power controllers like this regulate electric heaters, furnaces, infrared emitters and transformer loads.

Need the 1A400-8H3? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

AEG 1A400-8H3 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.

Key Specifications

1A400-8H3 is an AEG / Advanced Energy Thyro-A 1A SCR power controller, 400 V, 8 A. Source: Thyro-A datasheet (ordering code Thyro-A-1A-400-8-H-3).

Parameter	Value
Ordering code	Thyro-A-1A-400-8-H-3
Model	Thyro-A digital SCR power controller
Phase type	1A: single phase power controller for single phase operation
Type voltage	400 V (172 V to 440 V, -57% to +10%)
Type current	8 A
Apparent power	3.2 kVA
Fuse (H)	Integrated semiconductor fuse
Fan (F)	Not fitted (no 'F' in ordering code)
Control (3)	Standard V, V² control modes
Operating modes	TAKT, VAR, QTM, VT
Accuracy	±3% voltage, ±1.5% current
Frequency	47 to 63 Hz
Dimensions (W × H × D)	45 × 136 × 129 mm, 0.7 kg

Technical document (PDF)  |  Request a quote for 1A400-8H3 (reply within 24 hours)
