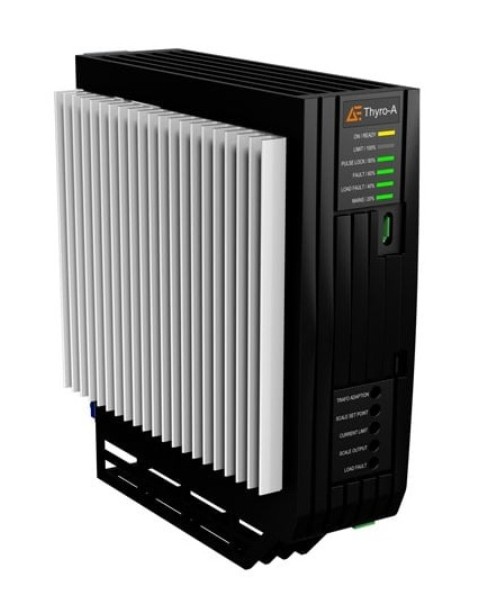

1A230-100H3 AEG - Thyro Power Controller
1A230-100H3 Description
AEG makes the 1A230-100H3, a 230 V, 100 A thyristor power controller. Typical applications are industrial heating, furnace control, drying lines and infrared heating systems.
USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 1A230-100H3, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.
Summary of Features
AEG Thyro power controller: a digital thyristor (SCR) power controller for precise control of electrical heating and other resistive and transformer loads. Single-, two- and three-phase versions, integrated semiconductor fuse, operating modes such as full-wave switching (TAKT) and phase-angle firing (VAR) depending on the model, and set point input by analog signal (0-20 mA / 0-10 V), digital input or optional fieldbus module.
Target Applications
AEG 1A230-100H3 is used for power control of electrical heating in industrial furnaces and ovens, glass manufacturing equipment, plastic extruders and presses, automotive paint drying lines, chemical pipe trace heating, packaging shrink tunnels and infrared drying in printing machines.
Key Specifications
1A230-100H3 is an AEG / Advanced Energy Thyro-A 1A SCR power controller, 230 V, 100 A. Source: Thyro-A datasheet (ordering code Thyro-A-1A-230-100-H-3).
| Parameter | Value |
|---|---|
| Ordering code | Thyro-A-1A-230-100-H-3 |
| Model | Thyro-A digital SCR power controller |
| Phase type | 1A: single phase power controller for single phase operation |
| Type voltage | 230 V (99 V to 253 V, -57% to +10%) |
| Type current | 100 A |
| Apparent power | 23 kVA |
| Fuse (H) | Integrated semiconductor fuse |
| Fan (F) | Not fitted (no 'F' in ordering code) |
| Control (3) | Standard V, V² control modes |
| Operating modes | TAKT, VAR, QTM, VT |
| Accuracy | ±3% voltage, ±1.5% current |
| Frequency | 47 to 63 Hz |
| Dimensions (W × H × D) | 75 × 203 × 193 mm, 1.9 kg |
Technical document (PDF) | Request a quote for 1A230-100H3 (reply within 24 hours)
