5STP40N6500 ABB - Thyristor

Also written as: 5STP 40N6500

Category: Thyristors / SCRs (Discrete & Press-pack)

Specifications: 6500V, 3780A

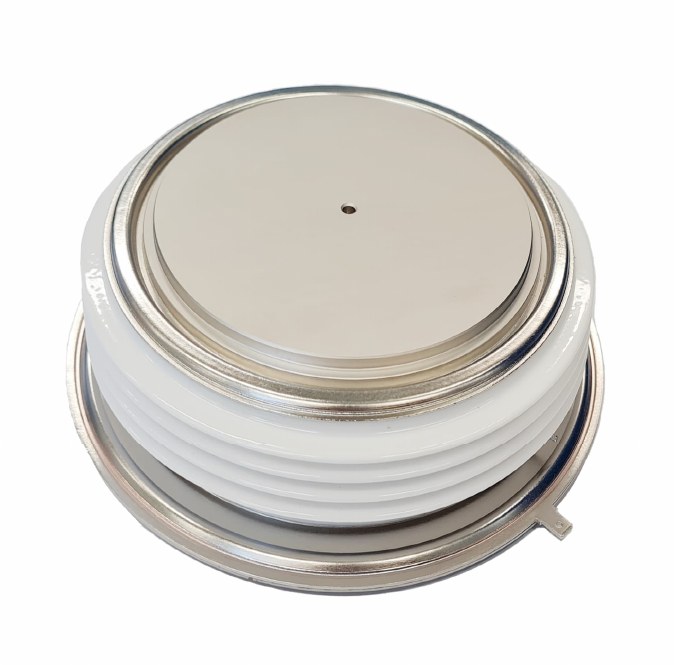

5STP40N6500 ABB Thyristor

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5STP40N6500 Description

5STP40N6500 is a 6500 V / 3780 A phase control thyristor from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5STP40N6500 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High forward and surge current rating
  • Low on-state and switching losses
  • Designed for industrial, renewable, T&D and traction applications
  • Optimum power handling capability
  • Interdigitated amplifying gate

Target Applications

ABB 5STP40N6500 finds applications in various industries and systems where high power switching is required.

Key Specifications

5STP40N6500 is a 6500 V / 3780 A phase control thyristor from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typePhase control thyristor
Repetitive peak voltage (VDRM / VRRM)6500 V
Average on-state current (IT(AV)M)3780 A
Surge on-state current ITSM65.0 kA
Package (mm)150/100
Supply statusNew product (Hitachi Energy)
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5STP 40N6500".

Technical document (PDF)  |  Request a quote for 5STP40N6500 (reply within 24 hours)
