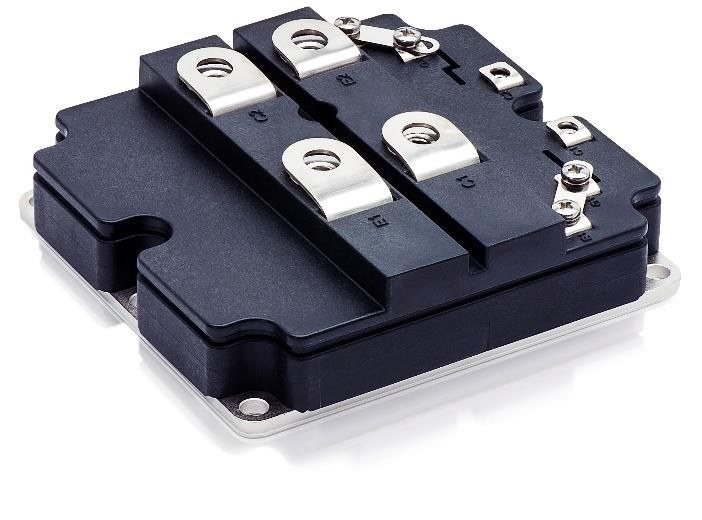

5SND0800M170300 ABB - IGBT Module
Also written as: 5SND 0800M170300
5SND0800M170300 Description
5SND0800M170300 is a 1700 V / 2 x 800 A IGBT module from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SND0800M170300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Ultra low-loss, rugged SPT+ chip-set
- Smooth switching SPT+ chip-set for good EMC
- Industry standard package
- High power density
- AlSiC base-plate for high power cycling capability
- AlN substrate for low thermal resistance
Target Applications
ABB 5SND0800M170300 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SND0800M170300 is a 1700 V / 2 x 800 A IGBT module from Hitachi Energy (former ABB Semiconductors) - HiPak IGBT Module. Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | IGBT module |
| Configuration | Dual IGBT |
| Collector-emitter voltage (VCES) | 1700 V |
| DC collector current (IC) | 2 x 800 A |
| Package | HiPak1 |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SND 0800M170300".
Technical document (PDF) | Request a quote for 5SND0800M170300 (reply within 24 hours)
