5SDD48H3200 ABB - Diode

Also written as: 5SDD 48H3200

Category: Rectifier & Schottky Diodes

Specifications: 3200V, 4708A

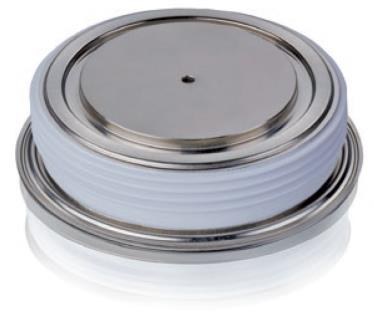

5SDD48H3200 ABB Diode

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

5SDD48H3200 Description

5SDD48H3200 is a 3200 V / 4708 A rectifier diode from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SDD48H3200 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Industry standard housing
  • Low forward voltage drop
  • High operating temperature
  • High forward current capability

Target Applications

ABB 5SDD48H3200 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SDD48H3200 is a 3200 V / 4708 A rectifier diode from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeRectifier diode
Repetitive peak reverse voltage (VRRM)3200 V
Average forward current (IF(AV)M)4708 A
Surge forward current IFSM61.0 kA
Package (mm)101.5/63
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SDD 48H3200".

Technical document (PDF)  |  Request a quote for 5SDD48H3200 (reply within 24 hours)
