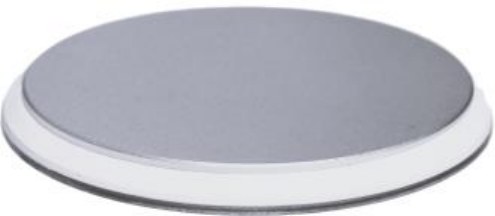

5SDD0145Z0401 ABB - Diode
Also written as: 5SDD 0145Z0401
5SDD0145Z0401 Description
5SDD0145Z0401 is a 400 V / 14560 A welding diode from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SDD0145Z0401 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Housingless welding diode
- Very low thermal resistance
- High forward current capability
- Low forward and reverse recovery losses
- Medium frequency range, typ. up to 2 kHz
Target Applications
ABB 5SDD0145Z0401 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SDD0145Z0401 is a 400 V / 14560 A welding diode from Hitachi Energy (former ABB Semiconductors). Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | Welding diode |
| Repetitive peak reverse voltage (VRRM) | 400 V |
| Average forward current (IF(AV)M) | 14560 A |
| Surge forward current IFSM | 85.0 kA |
| Package (mm) | 63.5/58 |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SDD 0145Z0401".
Technical document (PDF) | Request a quote for 5SDD0145Z0401 (reply within 24 hours)
