KD224575 Powerex - Power Transistor Module

Category: Darlington / Bipolar Transistor Modules

Specifications: 600V, 75A

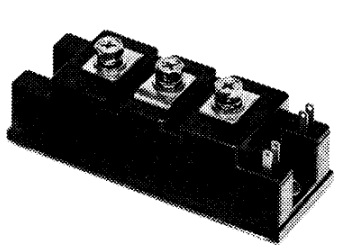

KD224575, POWEREX, Dual Darlington Transistor Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

KD224575 Description

The Powerex KD224575 is a Darlington transistor module, rated for 600 V and 75 A. Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the KD224575; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

KD224575 is a 600 V, 75 A dual Darlington transistor module from Powerex: two Darlington transistors, each with a reverse parallel connected high-speed diode.

  • Isolated mounting
  • Planar chips
  • Discrete fast recovery feedback diode
  • High gain (hFE)
  • Quick connect base-emitter signal terminals
  • Base-emitter speed-up diodes

Target Applications

Powerex KD224575 is used for AC motor control, DC motor control, switching power supplies, inverters.

Key Specifications

KD224575 is a 600 V, 75 A dual Darlington transistor module from Powerex: two Darlington transistors, each with a reverse parallel connected high-speed diode. Source: Powerex datasheet KD224575 - Dual Darlington Transistor Module 75 Amperes/600 Volts (data book pages D-29, D-30).

ParameterValue
ManufacturerPowerex
Product typeDual Darlington transistor module, isolated
ConfigurationTwo Darlington transistors, each with a reverse parallel connected high-speed diode
Collector-emitter sustaining voltage VCEO(sus)450 V
VCEV(sus) / VCEV / VCBO (VBE = -2 V)600 V
Emitter-base voltage VEBO7 V
Continuous collector current IC75 A
Diode forward current IFM75 A
Continuous base current IB4.5 A
Diode surge current IFSM750 A
Power dissipation PT (each transistor)350 W
DC current gain hFE75 min (IC = 75 A, VCE = 2 V); 100 min (IC = 75 A, VCE = 5 V)
Diode forward voltage VFM1.85 V max (IFM = 75 A)
VCE(sat) / VBE(sat)2.0 V / 2.5 V max (IC = 75 A, IB = 1 A)
Resistive load switching (max)ton 2.5 µs, ts 12 µs, tf 3.0 µs (VCC = 300 V, IC = 75 A, IB1 = 1.5 A, IB2 = -1.5 A)
Collector cutoff current ICEV1 mA max (VCE = 600 V, VBE = -2 V); 5 mA max at Tc = 125 °C
Thermal resistance (max)0.35 °C/W transistor part; 1.3 °C/W diode part (junction to case); 0.15 °C/W case to sink per 1/2 module
Junction temperature Tj-40 to +150 °C
Storage temperature-40 to +125 °C
Isolation voltage2000 Vrms
Max. mounting torqueM5 terminal screws: 17 in.-lb.; M6 mounting screws: 26 in.-lb.
Module weight (typical)210 g
DatasheetAvailable on this page (PDF)
