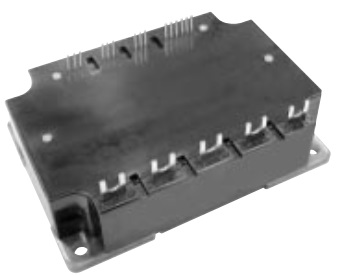

PM300CBS060 Mitsubishi - Intelligent Power Module

PM300CBS060 Description

Mitsubishi Electric PM300CBS060 is an intelligent power module (IPM) rated at 600 V and 300 A. It is built with six switches arranged as a three-phase bridge (6-in-1). An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Need the PM300CBS060? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

PM300CBS060 is a 600V 300A IPM.

Target Applications

Mitsubishi PM300CBS060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), six-pack (three-phase inverter)
Built-in protection	Over current, short circuit, over temperature (Tj detection), under voltage
VCES	600 V
IC	±300 A (TC = 25 °C)
ICP	±600 A
Isolation voltage	2500 Vrms
Terminal torque	M5: 2.5 - 3.5 N·m
