7MBR50SB120 Fuji Electric - IGBT Module

Other versions: 7MBR50SB120-50, 7MBR50SB120-55

Category: IGBT Modules

Specifications: 1200V, 50A

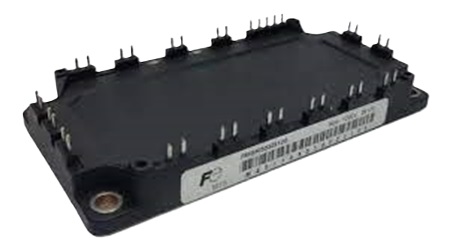

7MBR50SB120, FUJI, IGBT Module (S Series)

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

7MBR50SB120 Description

7MBR50SB120 is a 1200 V, 50 A IGBT module made by Fuji Electric. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

Request a quote for the 7MBR50SB120 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

7MBR50SB120 is a 1200 V, 50 A power integrated module (PIM) from Fuji Electric: 3-phase converter, brake chopper and 3-phase inverter (6 x 50 A) with thermistor.

  • NPT technology
  • Solderable package
  • Square SC SOA at 10 x IC
  • High short circuit withstand capability
  • Small temperature dependence of the turn-off switching loss
  • Low losses and soft switching

Target Applications

Fuji Electric 7MBR50SB120 finds applications in various industries and systems where high power switching is required.

Key Specifications

7MBR50SB120 is a 1200 V, 50 A power integrated module (PIM) from Fuji Electric: 3-phase converter, brake chopper and 3-phase inverter (6 x 50 A) with thermistor. Source: Fuji Electric datasheet 7MBR50SB120 (6x50A + chopper).

ParameterValue
ManufacturerFuji Electric
Product typePower integrated module (PIM)
Configuration3-phase diode converter + brake IGBT + 3-phase IGBT inverter + thermistor - see equivalent circuit
Inverter VCES / VGES1200 V / ±20 V
Inverter collector current IC75 A (Tc = 25 °C); 50 A (Tc = 80 °C)
Inverter ICP (1 ms)150 A (25 °C); 100 A (80 °C)
Inverter collector power dissipation PC360 W (1 device)
Brake IC / ICP / PC35 A (25 °C), 25 A (80 °C) / 70 A / 180 W
Converter VRRM / IO1600 V / 50 A (50/60 Hz)
Converter IFSM / I²t520 A (Tj = 150 °C, 10 ms) / 1352 A²s
Inverter VCE(sat)2.3 V typ, 2.7 V max (IC = 50 A, VGE = 15 V, terminal); 2.1 V typ chip
Gate threshold voltage VGE(th)5.5 / 7.2 / 8.5 V (min / typ / max)
Input capacitance Cies6000 pF typ
Inverter switching (VCC = 600 V, IC = 50 A, RG = 24 Ω)ton 0.35 / 1.2 µs, tr 0.25 / 0.6 µs, toff 0.45 / 1.0 µs, tf 0.08 / 0.3 µs (typ / max)
Inverter FWD forward voltage VF2.5 V typ, 3.3 V max (IF = 50 A, terminal); trr 350 ns max
Converter diode VFM1.2 V typ, 1.5 V max (IF = 50 A, terminal)
ThermistorR 5000 Ω (25 °C); B 3375 K typ (25/50 °C)
Thermal resistance Rth(j-c) maxInverter IGBT 0.35, inverter FWD 0.75, brake IGBT 0.69, converter diode 0.50 °C/W
Junction / storage temperature150 °C / -40 to +125 °C
Isolation voltage Viso2500 V AC, 1 min
Mounting screw torque3.5 N·m max (recommended 2.5 - 3.5 N·m, M5)
DatasheetAvailable on this page (PDF)
